What this is

Danbooru publishes its tag implications through an API, one page at a time. Tools that need the graph usually crawl outward from a tag they care about — which works, but can only ever see a neighbourhood, and quietly misses anything reachable by a route it didn't take.

This project takes the other approach: it downloads the entire tag_implications and tag_aliases tables once, by keyset pagination, and keeps every row including the deleted and retired ones. After that there is nothing left to crawl. For any tag, the explorer shows every active implication touching it that existed on the site at sync time — that is a property of how the data was fetched, not a claim about how thorough the crawl was.

The result is baked into a single HTML file with the whole graph embedded in it. You can put it on a USB stick. It works on a plane. Nothing is fetched while you use it, and nothing is bundled from a CDN.

Five ways to read one graph

Everything hangs off one selection. Pick a tag anywhere — search it, click a dot, click a treemap tile, click a row in an outline — and all five views follow it. Each answers a different question about the same thing, from the whole forest down to a single edge.

1Landscape — where does a tag sit?

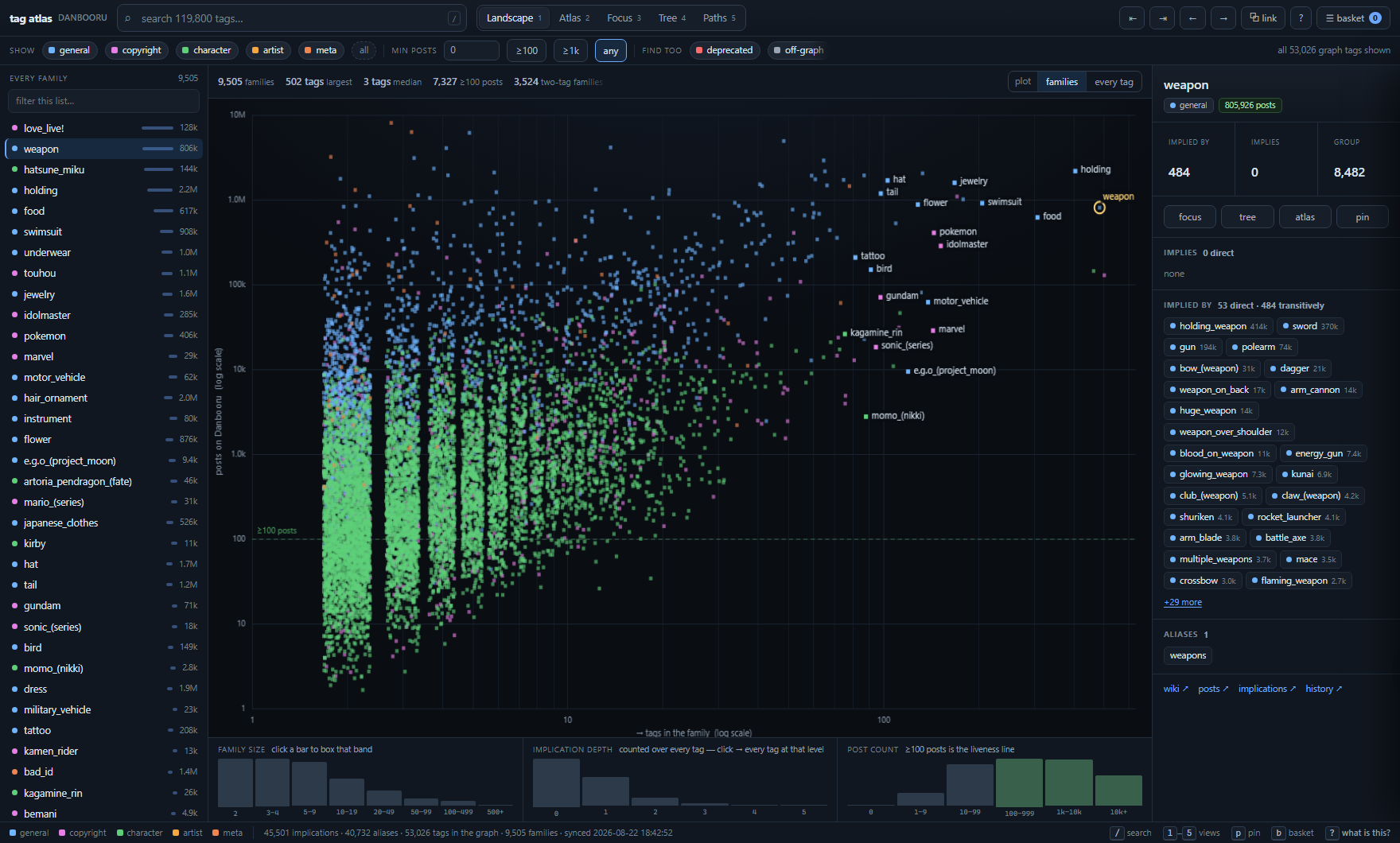

Landscape view: every Danbooru tag family plotted as one dot, closure size on the x axis against post count on the y axis, coloured by tag category, with histograms of family size, implication depth and post count below. — Every family as one dot: closure size across, post count up, with the ≥100-post liveness line drawn where it actually falls.

The only view that shows the shape of the dataset — the long tail, the live band, the handful of outliers, all at once. Just 67 families carry 50 or more tags, so any treemap of families hides the other 9,438 entirely. Drag a box to pull a region into the rail; the three histograms below profile the same population by size, depth and post count, and every bar is clickable.

2Atlas — which families are big?

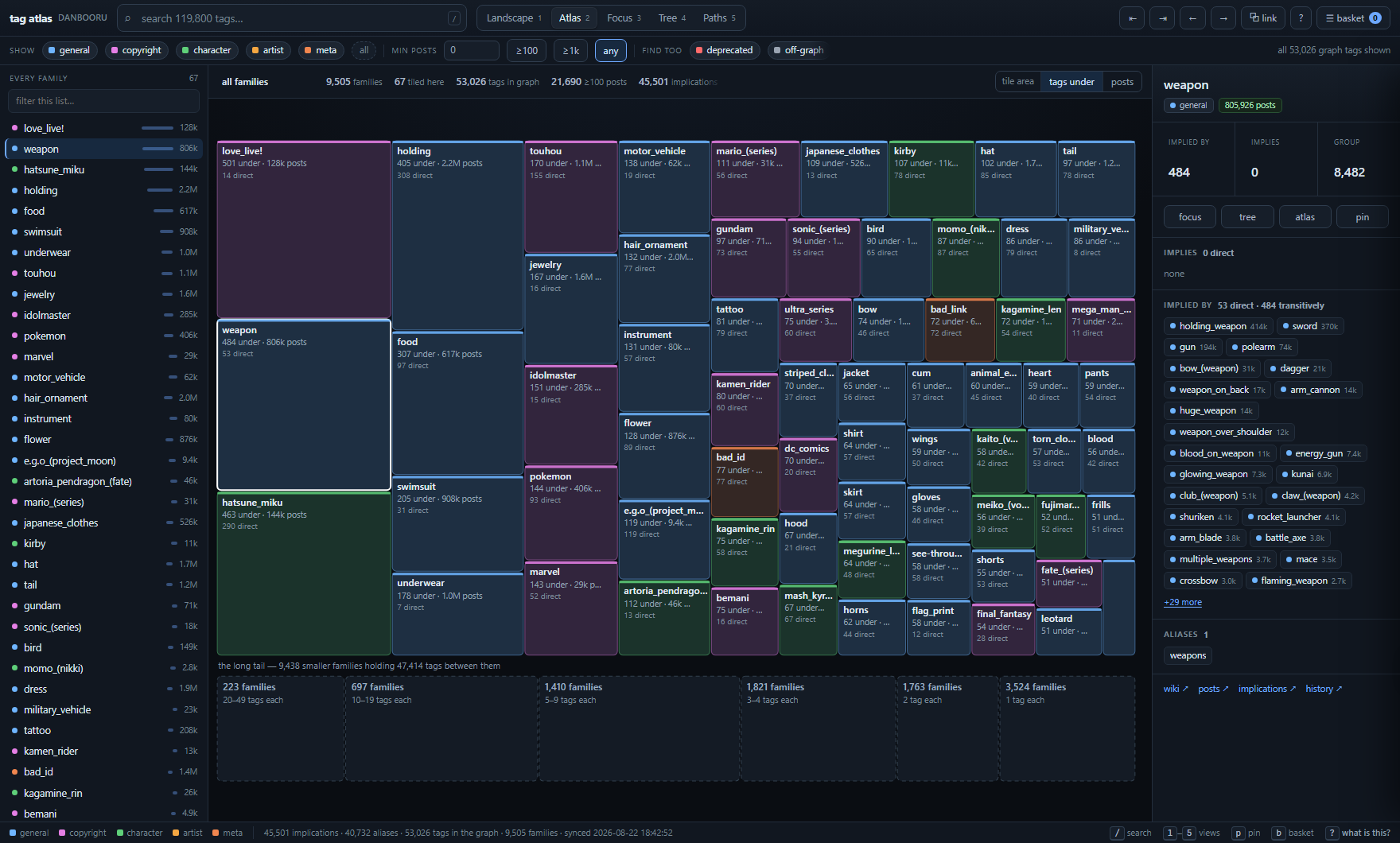

Atlas view: a zoomable treemap tiling Danbooru tag families by size, with long-tail families folded into size buckets along the bottom. — A zoomable treemap. The 9,438 tiny families fold into size buckets along the bottom rather than paging a treemap through thousands of unreadable cells.

3Focus — what sits around this tag?

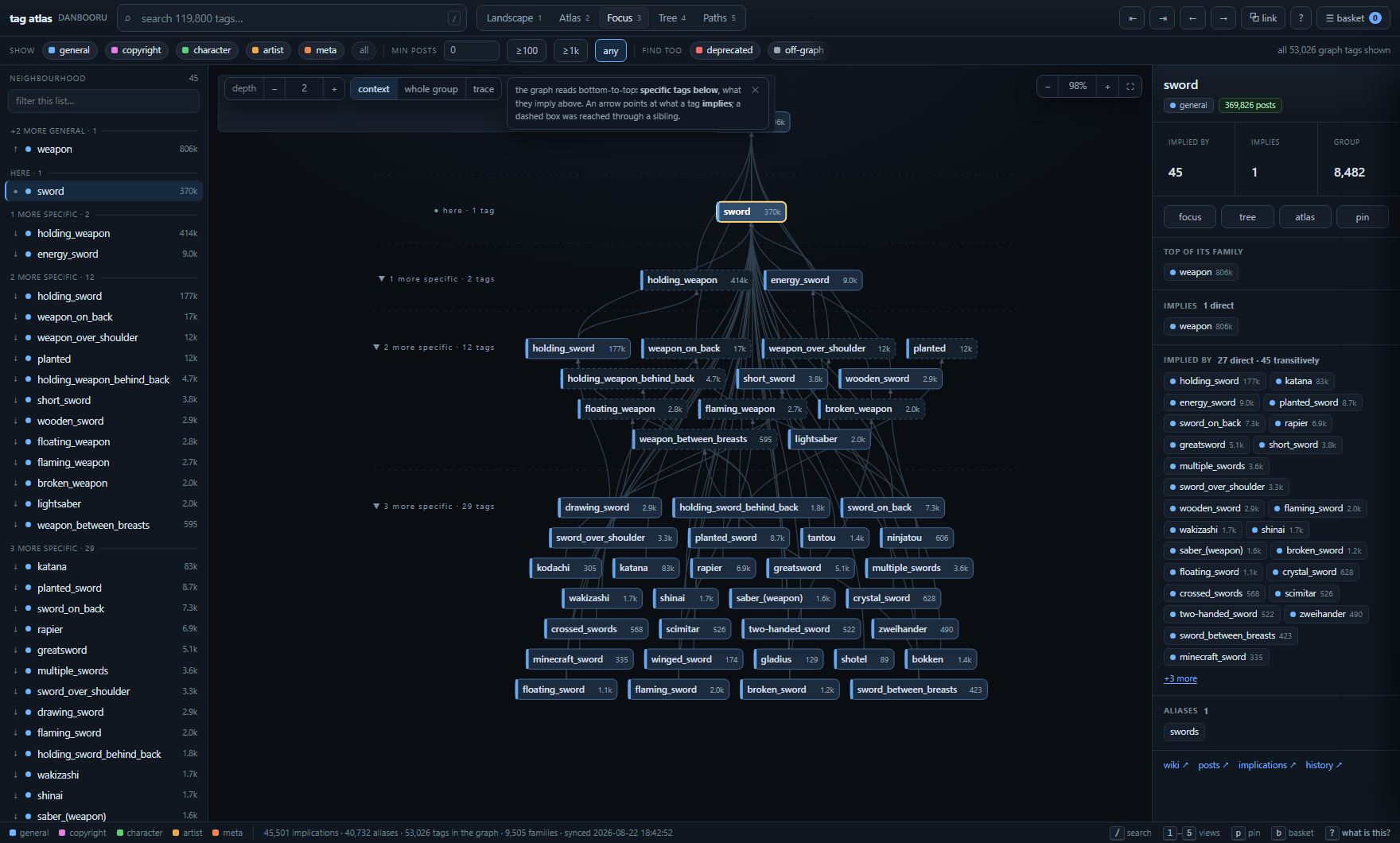

Focus view: the neighbourhood of the sword tag drawn as a layered directed acyclic graph, with specific tags at the bottom and the tags they imply above. — The local graph as a layered DAG. Arrows always point upward — specific tags below, what they imply above.

Bands are longest-path height relative to the centre, not hop count. Because the graph is acyclic, that guarantees every arrow points strictly upward and no tag ever shares a band with something it implies. Hop-count banding fails here: centre on hammer and weapon — one hop from a child of hammer — lands in hammer's own row.

4Tree — everything under this tag

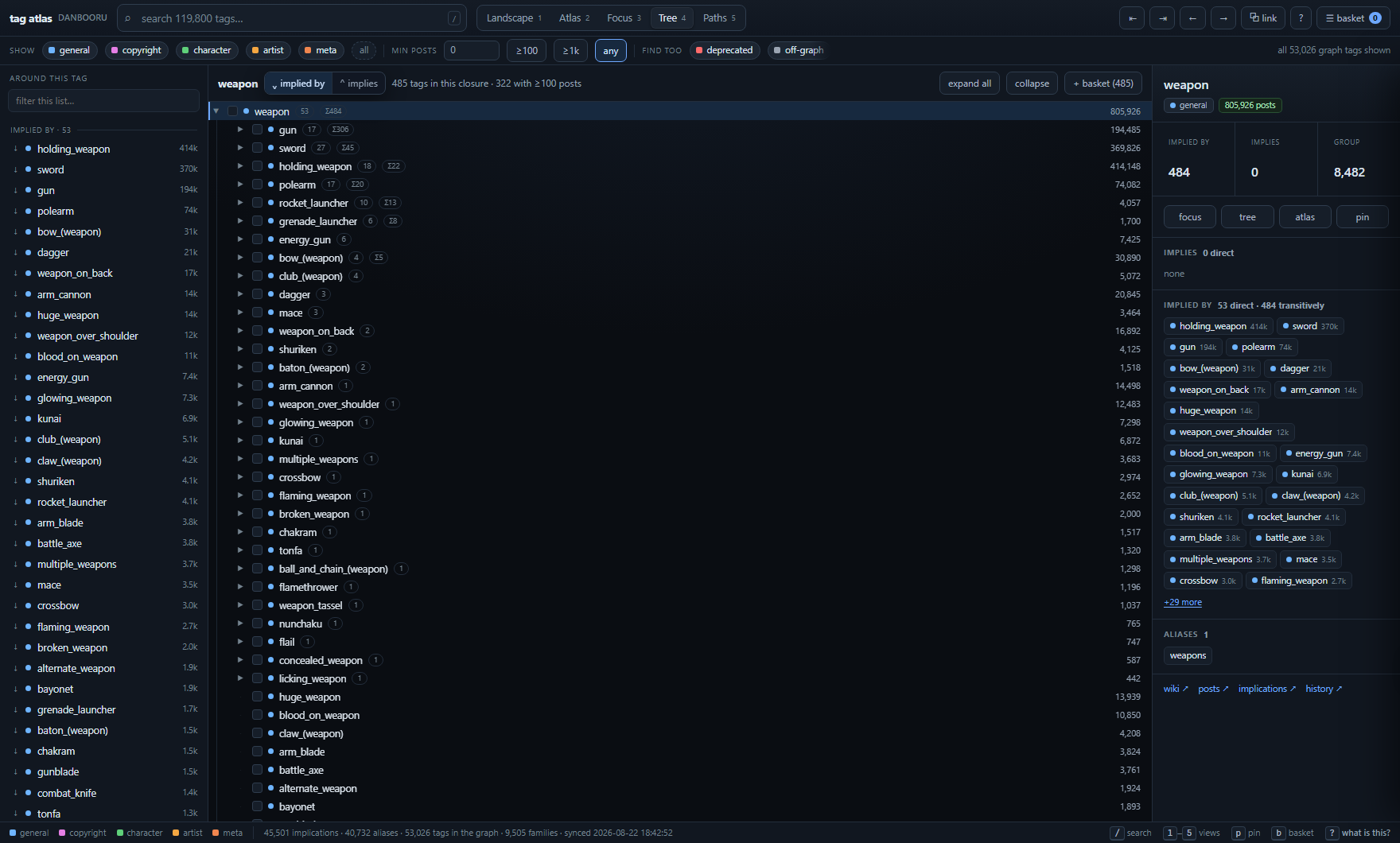

Tree view: the full transitive closure of the weapon tag as a collapsible outline with per-branch subtree counts and post counts. — The full transitive closure as a collapsible outline, with per-branch subtree sizes and a live count of how many tags in the closure clear 100 posts.

5Paths — how do two tags relate?

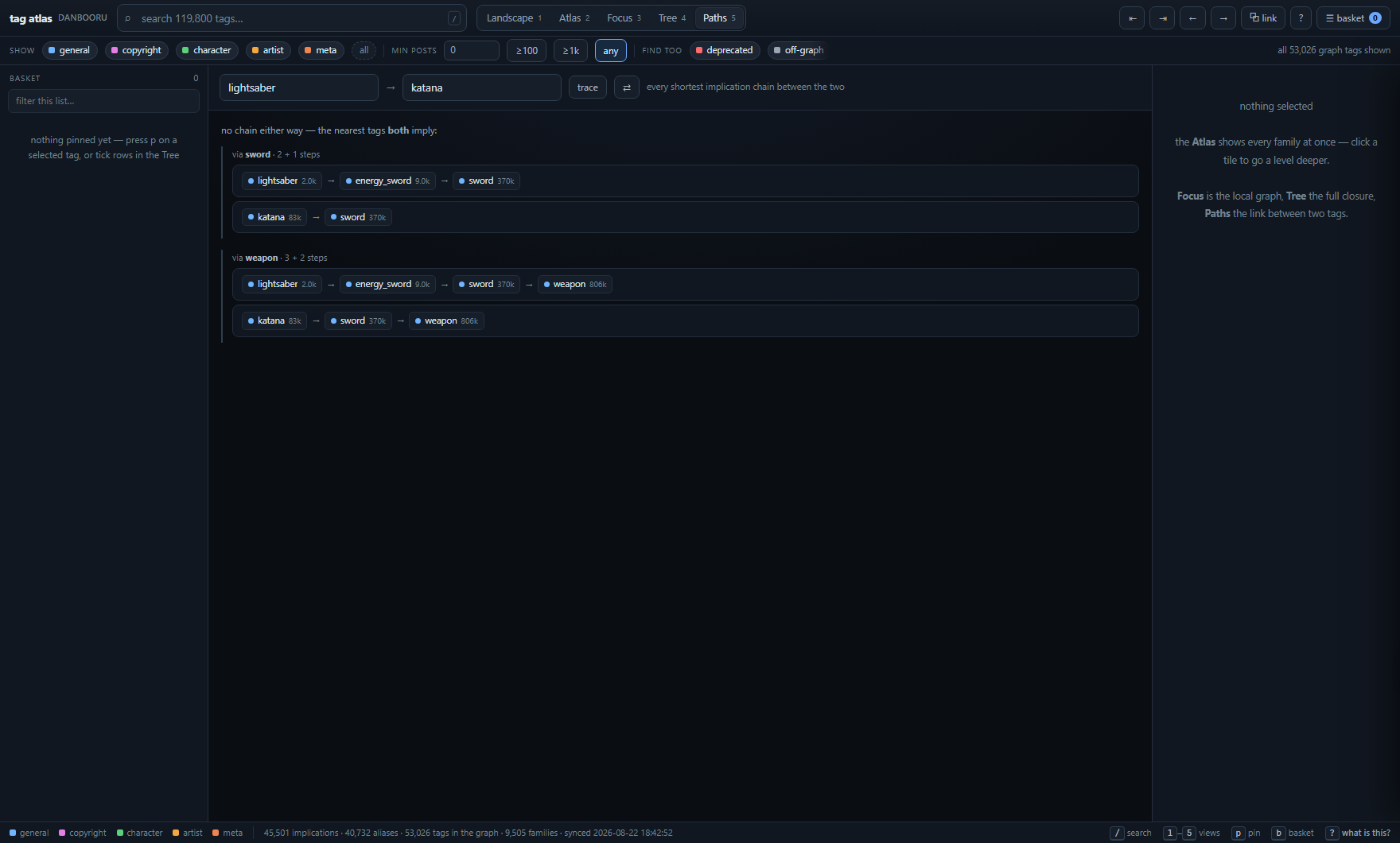

Paths view: shortest implication chains between the lightsaber and katana tags, falling back to the nearest tags both of them imply. — Every shortest implication chain in each direction — and when there is none, the nearest tags both of them imply.

That fallback is usually the more interesting answer. lightsaber and katana never imply one another, but they meet two steps up at sword, and three steps up at weapon. It tells you where in the graph two unrelated-looking tags finally converge.

The dataset

Six tables, no surprises. Download danbooru_implications.db and query it with anything that speaks SQLite.

table	what's in it
implications	`(id, a, b, status)` — the complete site table, active and deleted alike
aliases	`(id, a, b, status)` — the complete site table
tags_all	`(name, id, post_count, category, is_deprecated)` for every name in either graph
wiki	`(title, body)`, cached on demand
overrides	manual corrections, layered on at build time — synced data is never mutated
sync_state	id watermarks, timestamps, API call counts

python -c "import sqlite3; c = sqlite3.connect('danbooru_implications.db'); \
print(c.execute(\"select a, b from implications where b='hammer' and status='active'\").fetchall())"

One quirk worth knowing. 691 tags carry is_deprecated=1, and 303 of them appear in some implication row — but every one of those rows is deleted. Danbooru retires the implications when it deprecates a tag, so every "deprecated" counter over the active graph reads zero by construction. That is the dataset, not a bug in the reader.

Run it yourself

The whole toolchain is one Python file with no third-party dependencies — standard library only, Python 3.11 or newer. The database ships with the repository and is current as of 2026-08-22, so a cold sync is never needed to get started.

git clone https://github.com/grio43/danbooru-implication-map
cd danbooru-implication-map

start.bat                                       # Windows: build if needed, then open

python -X utf8 implications_tool.py status      # what's in the DB
python -X utf8 implications_tool.py sync        # incremental pull from Danbooru
python -X utf8 implications_tool.py explorer -o danbooru_explorer.html
python -X utf8 implications_tool.py build hammer   # one-tag radial map

The explorer itself needs nothing installed at all — it is one HTML file, and every browser already has what it takes to open it.
